DESCRIPTION:

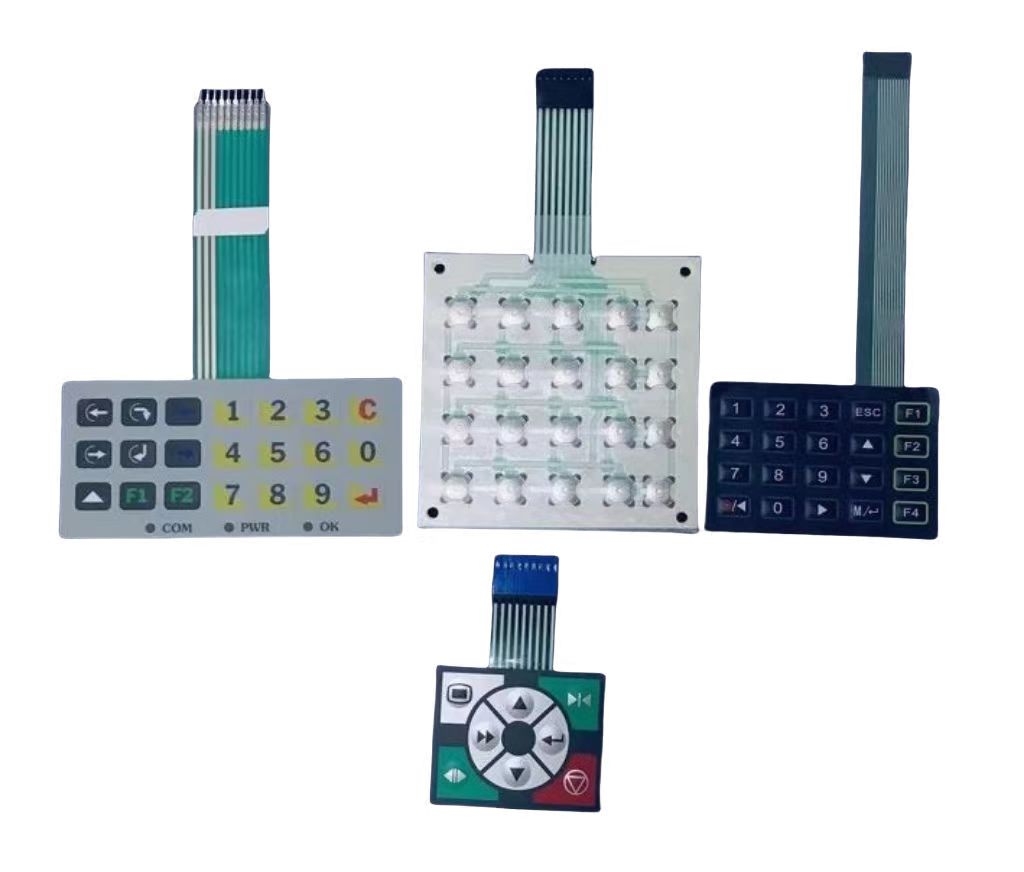

IP65 rated waterproof sealed customized industrial and medical soft membrane keypad with LCD screen, this is a compact, and fully-rugged panel mounted keypad. The front surface is specially designed with one piece durable seamless membraneous polyester to meet IP65 specifications, which means it is resistant to harsh environment such as dirt, dust, water, ice, salt mist, chemical liquids, corrosives, disinfectants, oil, etc. This keypad is just for reference, we can customize this type of membrane keypad according to customers requirements.
FEATURES:
-Panel mouting solution or glue mounting solution.
-Metal dome key switches with 0.5mm key travel with excellent tactile feeling.
-Supper flat antibacteria surface which is very easy for cleaning.
-Customization with multiple languages to accommodate foreign or custom variants available.
-Matrix interface.
APPLICABLE INDUSTRIES:
Food and beverage industry, paper manufacturing industry, medical and laboratory, clean room, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers, industrial automation, pharmaceutical, oil and gas, dirty manufacturing environments, warehouses, health, nutrition, public safety, etc.
MECHANICAL DATA:
-IP65 rated waterproof.
-100% Humidity Resistant.
-Vibration resistance: 5 Hz -200 Hz, IEC 60512-4.
-Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4.
-Metal dome PCB.
-Actuation Force: 0.5N+/-0.1N.
-Key Travel: 0.5mm.
-Key switch Lifetime: 3 mil. Operations.
-Lifespan: > 3 years.
-MTBF >50000H.
-MTTR <30min.
-G.W.: appr. 0.10KGs.
-Dimensions: customize according to user’s requirements.
ELECTRICAL DATA:
-Operating Temperature: -20 °C to +60 °C.
-Storage Temperature: -30 °C to +70 °C.
-Supply Voltage: +5V DC +/- 5%.
-Current Rating: appr. 20mA.
-EMC Emission: EN55022(B).
-Saline mist: 96 hours, IEC 60512-6.
-Damp heat test at + 40º C: 21 days, IEC 60512-6.
-Dry heat test at + 85º C: 10 days, IEC 60512-6.
-OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android.
RELIABILITY:
RoHS, CE and FCC, IP65, 1 Year Limited Warranty.
Dimensions: customize according to user’s requirements.
We will send you technical drawing by email once received your inquiry.
It's available to produce the keypad's layout into different languages, different letters, customized letters or symbols according to user's specific requirements.
